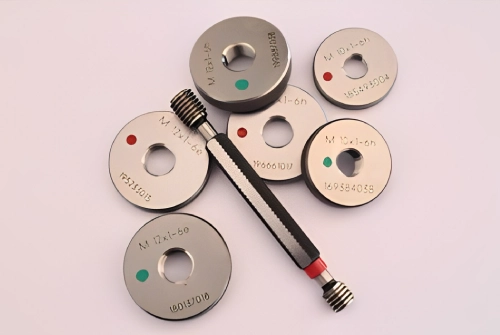

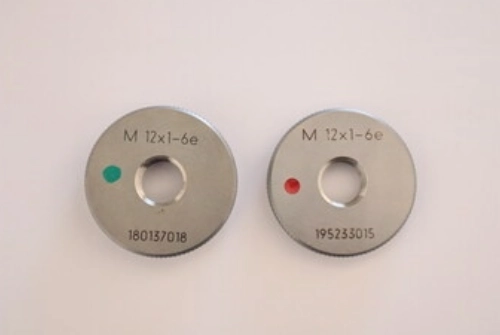

Thread Ring Gauge
A thread ring gauge is a precision tool used for checking the external threads of a workpiece (typically bolts, studs, or other threaded components). It is used to verify whether the external threads conform to a specified standard in terms of size, pitch, and thread form.
Uses of Thread Ring Gauges
Thread ring gauges are primarily used to check the *external threads* of a workpiece, ensuring they are within tolerance limits for parameters like pitch, diameter, and thread profile.
In industries like automotive, aerospace, and heavy machinery manufacturing, thread ring gauges are vital for maintaining high-quality standards. They are used in the *inspection process* to detect any variations or defects in the thread geometry.
A thread ring gauge is used to confirm whether the thread fit is correct for its corresponding *nut* or threaded hole. It ensures that the thread on the bolt or stud will correctly engage with the matching nut.
These gauges help check whether the thread conforms to a specific *standard or specification*, such as Unified Thread Standard (UTS), ISO, or Metric threads, ensuring the correct thread form is achieved.
In some cases, thread ring gauges can be used for inspecting *worn-out or damaged threads* to determine if re-tapping or re-threading is necessary.
Thread ring gauges are used for the *calibration* of threading machines and other equipment. By using them as a reference, manufacturers can ensure that their machines are producing threads within the specified tolerances.
Advantages of Thread Ring Gauges
Thread ring gauges are made with *high precision* to ensure they can detect even the smallest deviations in thread geometry. They provide a reliable method for measuring the accuracy of external threads. reliable measurements of internal threads. This ensures that threaded parts meet the required specifications and function properly.
They offer a fast way to inspect threads compared to more manual methods like using micrometers or calipers. This increases productivity and reduces inspection time.
By using a thread ring gauge, manufacturers can ensure that each threaded part meets the same set of standards, promoting *uniformity* in production.
Though they are precision tools, thread ring gauges are durable and long-lasting, reducing the need for frequent replacements or recalibration. This makes them *cost-effective* in the long term.
Thread ring gauges are simple to operate, making them easy for operators to use without needing advanced technical skills. They can be quickly engaged on the threaded part for inspection.
They do not involve cutting or altering the threads, so there is no damage to the part being measured. They simply serve as a reference for *acceptance or rejection* of the workpiece based on its thread quality.
Thread ring gauges are available in various sizes and thread forms, allowing them to be used for a wide range of threaded parts, from *fine threads to coarse threads* and from *standard to custom sizes
By identifying defective threads early, thread ring gauges help in improving the overall *production process* by minimizing defective parts and the cost of rework.
Thread ring gauges are designed to conform to international *standards* such as ISO, ANSI, and JIS, ensuring that they meet global quality requirements.
Conclusion:
Thread ring gauges are essential tools for ensuring the precision and reliability of external threads, which are critical in a wide range of mechanical and structural applications. Their main benefits lie in their accuracy, cost-effectiveness, and role in maintaining consistent quality control during production.
