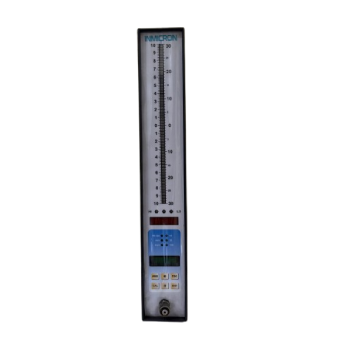

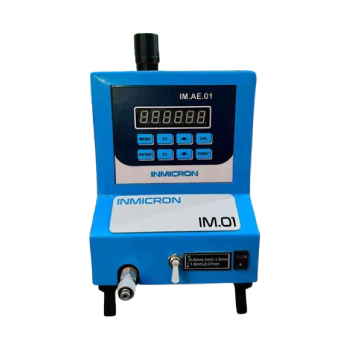

Air Electronic Unit
An air electronic unit (often referred to as electronic air gauge unit) is a device that uses air pressure in combination with electronic sensors to measure the dimensions of parts. These units are typically used in precision measuring applications where non-contact, high-speed, and highly accurate measurements are required. The air pressure or flow is typically measured through probes or nozzles that are connected to the workpiece, with the electronic system providing a readout of the measurement.
Uses of Air Electronic Unit:
Air electronic units are widely used for measuring both internal and external diameters of cylindrical parts, such as shafts, pins, rings, tubes, and pipes. These gauges offer high accuracy for parts that need to fit precisely within their intended assemblies.
These units are excellent for checking tolerances and verifying whether parts will fit into specific applications. For example, they can ensure that shafts fit into bearings, pins fit into holes, or bushings fit over shafts. By checking for the correct diameters and ensuring that these fitments meet specifications, manufacturers ensure proper function and prevent assembly issues.
Air electronic units are ideal for high-volume production environments where speed and consistency are essential. These systems can be integrated into assembly lines for continuous, automated measurement of parts as they are produced. This helps to detect out-of-tolerance parts early in the production process, reducing scrap and rework costs.
For parts with complex or irregular geometries, air electronic units can be adapted with custom probes or nozzles to measure internal passages, bores, grooves, or other intricate features that are difficult to measure using traditional tools. They can handle a wide range of sizes and shapes, making them versatile for various applications.
Air electronic units are frequently used in industries like automotive, aerospace, and manufacturing, where cylindrical or spherical parts are critical. These units are designed to provide precise measurements for parts like engine components, bearings, valve seats, gears, tubes, and rods.
Air electronic units can also be used to measure the wall thickness of thin-walled components, such as pipes, tubes, or casings. Since they don’t apply pressure directly to the part, they are ideal for measuring delicate or thin structures without causing any deformation.
These units can be used to measure wear or deformation in mechanical parts over time. For instance, in engines or mechanical assemblies, air electronic units can detect if a part has worn down or if there has been any distortion due to long-term use, ensuring that parts are replaced before they cause failures.
Many air electronic units are integrated into automated systems, where the measurements are automatically recorded and logged in a computer system for traceability and data analysi. This is particularly valuable in industries that require precise documentation for quality control or compliance, such as aerospace, medical devices, and automotive manufacturing.
Air electronic units are highly effective at inspecting bearing seats and housings for their internal diameter, ensuring that they are within the required tolerance. This is critical for ensuring that bearings will fit correctly, preventing operational issues or premature wear in mechanical systems.
Advantages of Air Electronic Units:
Air electronic units offer non-contact measurement, meaning the gauge doesn’t physically touch the part being measured. This eliminates the risk of damaging the part or introducing contamination, making it particularly valuable for measuring delicate, soft, or fragile components.
Air electronic units provide high-precision measurements. They can detect submicron variations, which makes them ideal for applications requiring tight tolerances, such as in the automotive, aerospace, and medical device industries. This accuracy ensures that parts meet specifications and function as required.
These systems offer rapid measurement cycles, which is crucial for high-speed production and quality control. They can measure parts quickly, making them suitable for use in assembly lines where large volumes of parts must be inspected in a short time without slowing down production.
Air electronic units are versatile and can measure a wide variety of parts, from small, precise components to larger industrial pieces. They can be used to measure both internal and external dimensions, and custom probes or nozzles can be added to measure complex shapes or features, such as grooves, threads, or bore sizes.
Since these gauges use air for measurement, there is no physical contact with the part. This means there is *no risk of wear or deformation to either the part or the gauge. This is especially important when measuring parts with delicate surfaces or materials that are susceptible to damage.
Many modern air electronic units are designed to interface with computer systems and data management software. This allows for real-time data logging, analysis, and traceability, which is critical for quality assurance and compliance in industries like aerospace, automotive, and medical manufacturing.
Because air electronic units are automated, they can minimize human error in measurements, which is often an issue with traditional hand tools like micrometers or calipers. These units provide repeatable and consistent results every time, ensuring that quality control is more reliable and that dimensional inspections are always accurate.
Air electronic units are typically compact, user-friendly, and easy to integrate into production lines. Their simplicity in operation means that they can be used by operators with minimal training, which reduces the potential for errors and increases efficiency.
Air electronic units are designed for low maintenance. Since there are no moving parts in the measurement process, they are less prone to wear and tear, resulting in lower maintenance costs and longer lifespan.
Air electronic units provide consistent and repeatable measurements. This is especially important for high-precision applications where each part must meet exacting standards, such as for safety-critical components in automotive or aerospace industries.
These units enable fast, reliable measurements that help to speed up the production process while maintaining high levels of accuracy. This leads to higher throughput, improved production efficiency, and reduced downtime for inspection, making them ideal for high-volume manufacturing environments.
Air electronic units are particularly advantageous for measuring thin-walled or delicate parts that may be easily deformed or damaged by traditional measuring tools. Since there is no contact, these parts are not at risk of being altered or damaged during the inspection process.
Since there is no direct contact between the tool and the part, there is no risk of contamination from oils, fingerprints, or other residues that might be transferred during physical measurements. This makes air electronic units ideal for clean-room or sensitive environments like electronics or medical device manufacturing.
Air electronic units can be integrated into automated measurement systems, which can automatically check parts in real-time, sort parts based on measurements, and even adjust manufacturing processes accordingly. This integration further boosts efficiency and helps eliminate human errors.
Conclusion:
Air electronic units offer high-precision, non-contact measurement solutions that are ideal for high-speed, high-accuracy applications. Their ability to measure both internal and external dimensions, speed in operation, and versatility for a wide range of part types make them indispensable in quality control, production monitoring, and machine calibration. The non-contact nature reduces the risk of damage to delicate or fragile parts, while real-time data collection improves traceability and consistency. These units provide a significant advantage in industries where measurement accuracy and high throughput are critical, such as automotive, aerospace, electronics, and medical devices. With advantages like low maintenance, operator safety, and reliable performance, air electronic units are a valuable tool in modern precision manufacturing and quality assurance.
